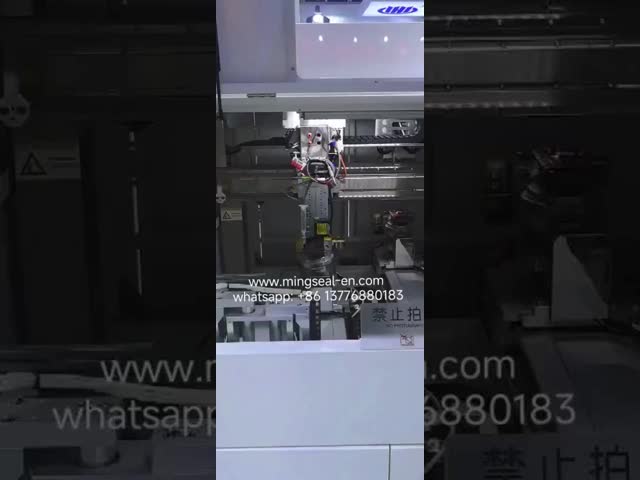

DW200P Precision Spot- welding Machine
Features and Advantages
Real- time welding pressure inspection to give an alarm when the preset range is exceeded. Precise energy control to effectively prevent burns
Targeted Solutions
Closed-loop energy control to quickly achieve stable output and effectively prevent the pad burns caused by energy diffusion.
Closed-loop pressure control with the error of ±5g, and real-time pressure inspection to give an alarm when the threshold is exceed.
Application Fields
Technical Specifications
| Model | DW200P | ||
| Structure | Frame structure | Desktop | |
|
Product Application Fields | Application fields | motor, electroacoustics | |
| Fixture width range (W *D) | 200 x 200mm | ||
| Max. fixture weight | 5kg (with Product ) | ||
| Transmission mechanisms | Servo motor&Screw module | ||
| Repeatability | X/Y: ±0.015mm | ||
|
Motion System | Positioning accuracy | X/Y: ±0.025mm | |
| Max. movement speed | X/Y:500mm/s Z:100mm/s | ||
| Max. accelerated velocity | X/Y:0.5g Z:0.1g | ||
| Visual positioning method | Mark/Product appearance features | ||
|
Vision System | Recognition accuracy | ±1Pixel | |
|
Welding Media Requirement |
Welding pad | material | metals like copper, tin |
| shape | Regular shape and clear boundary | ||
| size | min. size≥8 times of wire diameter | ||
| surface condition | flat and clean | ||
|
Conductor wire | shape | Enameled wire or bare copper wire | |
| size | Diameter φ0.02~φ0.1mm | ||
|
Facilities | Dimensions W*D*H | 700×740×800mm | |
| Machine weight | 100KG | ||
| Power supply | 220V AC 50Hz | ||
| Power | 900W | ||
| Inhale | 0.5Mpa,150L/min | ||
| Working ambient temp. | 0-40℃ | ||
| Working ambient relative humidity | 20-90% (no dewing) | ||
